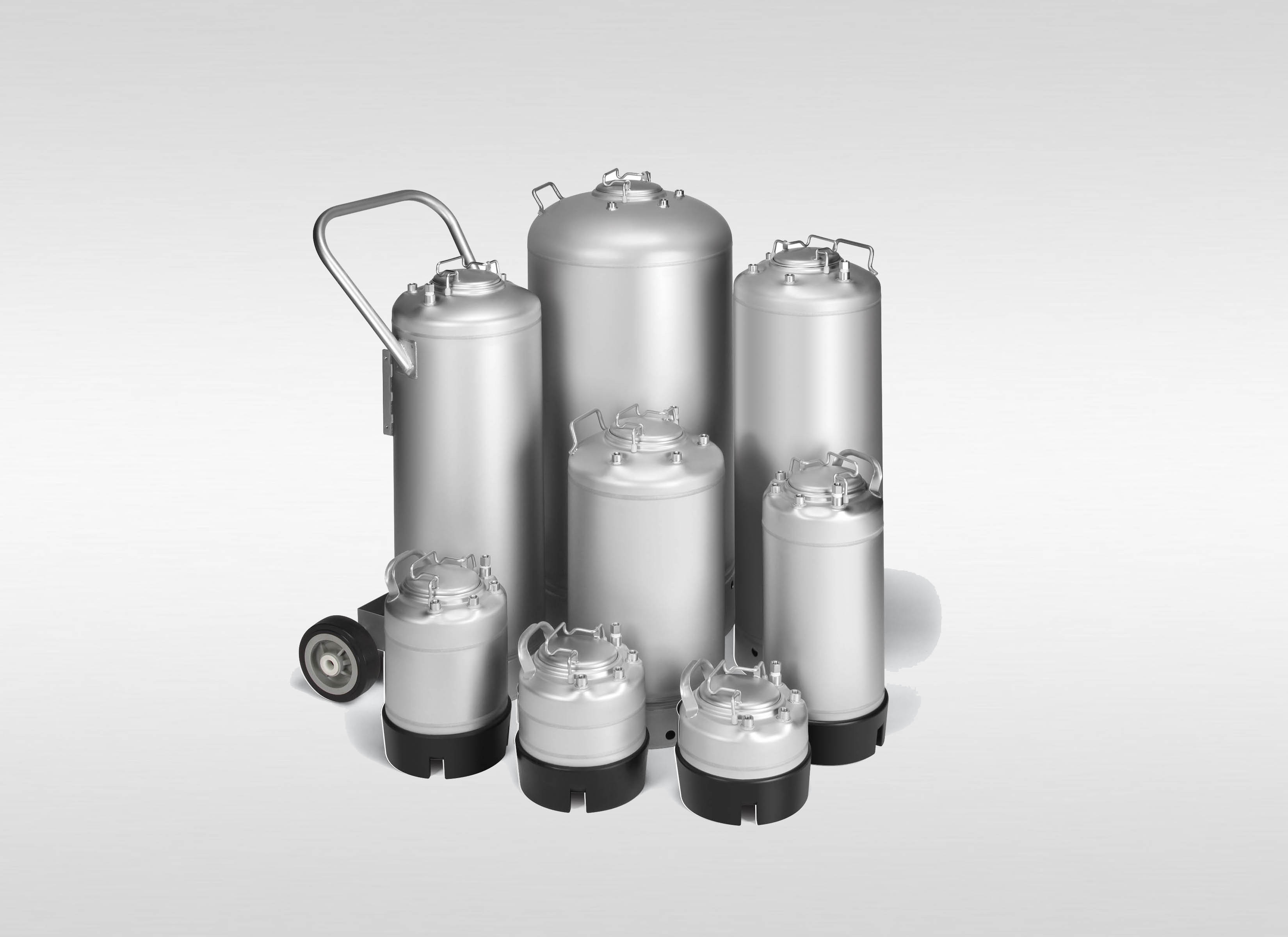

Apache’s stocked small vessel line allows for immediate availability for liquid dispensing and general storage needs.
- Sanitary product contact surfaces either 304L or 316L
- EPDM Closure O-Rings
- Fully Pickle Passivated Finish

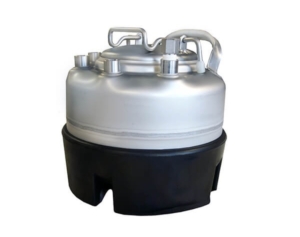

Model 90
- 9″ Inside Diameter
- 165 psi Maximum Allowable Working Pressure at 100 degrees F
- (3) 1/3 FNPT, (1) 3/8″ FNPT with Removable 1/4″ Diptube
- Molded Rubber Base
- Large 4 7/8″ x 5 7/8″ oval opening
- (4) Sizes ranging from 1.40 gallons to 5.1 gallons
| Catalog Number | Gallons | Liters | Height (inches) |
|---|---|---|---|
| 90-1* | 1.40 | 5.30 | 9 3/8 |
| 90-2* | 2.13 | 8.05 | 11 5/8 |
| 90-3* | 3.24 | 12.27 | 15 1/4 |
| 90-5* | 5.10 | 19.3 | 22 1/2 |
* Available in 304L & 316L Stainless

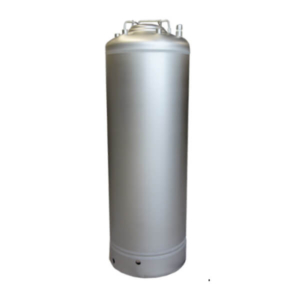

Model 120
- 12″ Inside Diameter
- 190 psi Maximum Allowable Working Pressure at 100 degrees F
- (3) 1/2″ FNPT, (1) 3/8″ FNPT with Removable Diptube
- Stainless Skirt
- Large 4 7/8″ x 5 7/8″ Oval Opening
- (2) sizes 10.4 gallons and 16 gallons
| CATALOG NUMBER | GALLONS | LITERS | HEIGHT (INCHES) |
|---|---|---|---|
| 120-10* | 10.4 | 39.4 | 25 |
| 120-16** | 16.4 | 62.0 | 37 1/4 |
* Available in 304L & 316L
** Available in 316L Stainless only

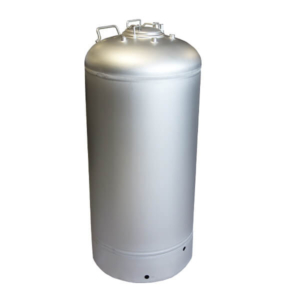

Model 180
- 18″ Outside Diameter
- 140 psi Maximum Allowable Working Pressure at 100 degrees F
- (3) 1/4″ FNPT, (1) 3/8″ FNPT with Removable 1/4″ Diptube
- Stainless Skirt
- Large 4 7/8″ x 5 7/8″ Oval Opening
- One size 324 gallons
| CATALOG NUMBER | GALLONS | LITERS | HEIGHT (INCHES) |
|---|---|---|---|
| 180-37.2* | 37.4 | 141.5 | 40 7/16 |
* Available in 316L Stainless only
Stock Tank Lid Operation
In this video, we highlight Apache’s standard sanitary vessels and demonstrate the design, operation, and secure closure features that support safe, efficient access during production, inspection, and cleaning.
